ASC Type Cast Aluminum Junction Box (2 Way - Ø88 mm)
Product Code:ASC-119-G1
- It is made of aluminum injection molding. Upon request, electrostatic paint can be applied in RAL... color.

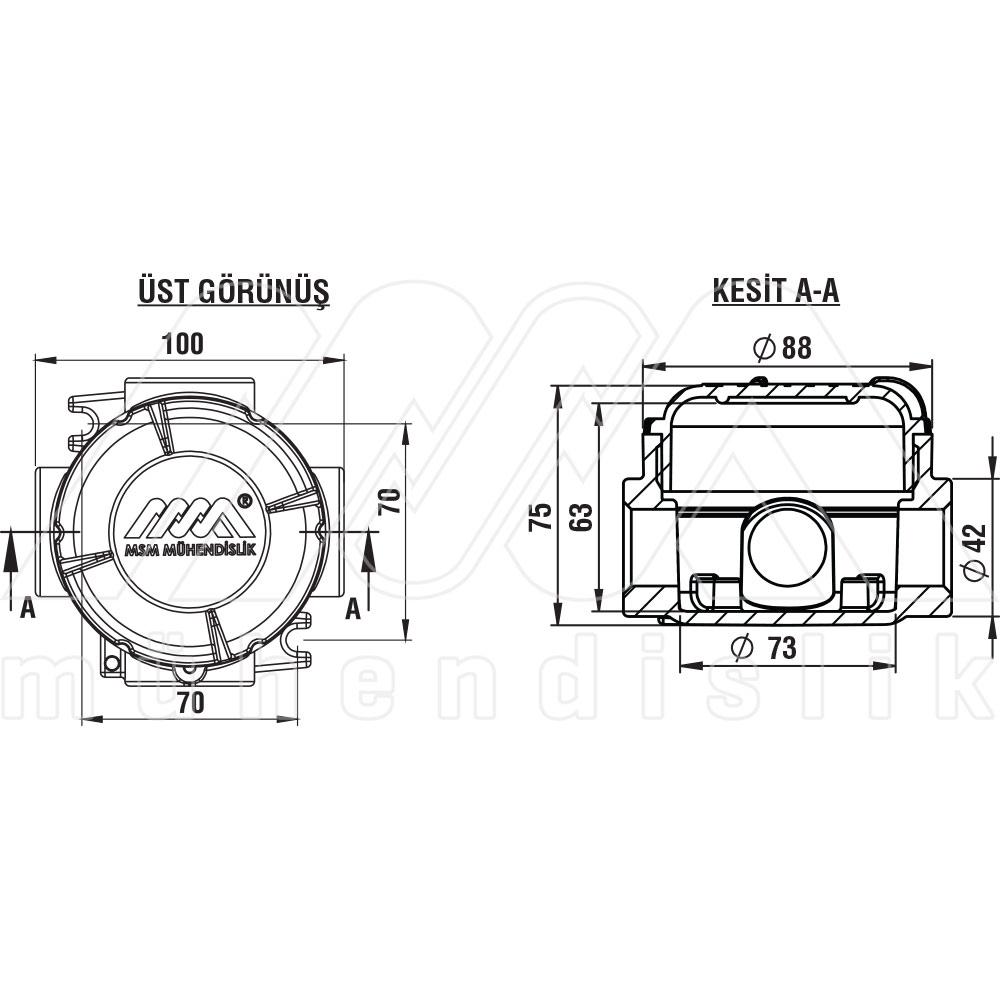

- The net inner depth of Ø 88 mm junction boxes is 63 mm, the net inner diameter is 77 mm and the body wall thickness is 3.5 mm.

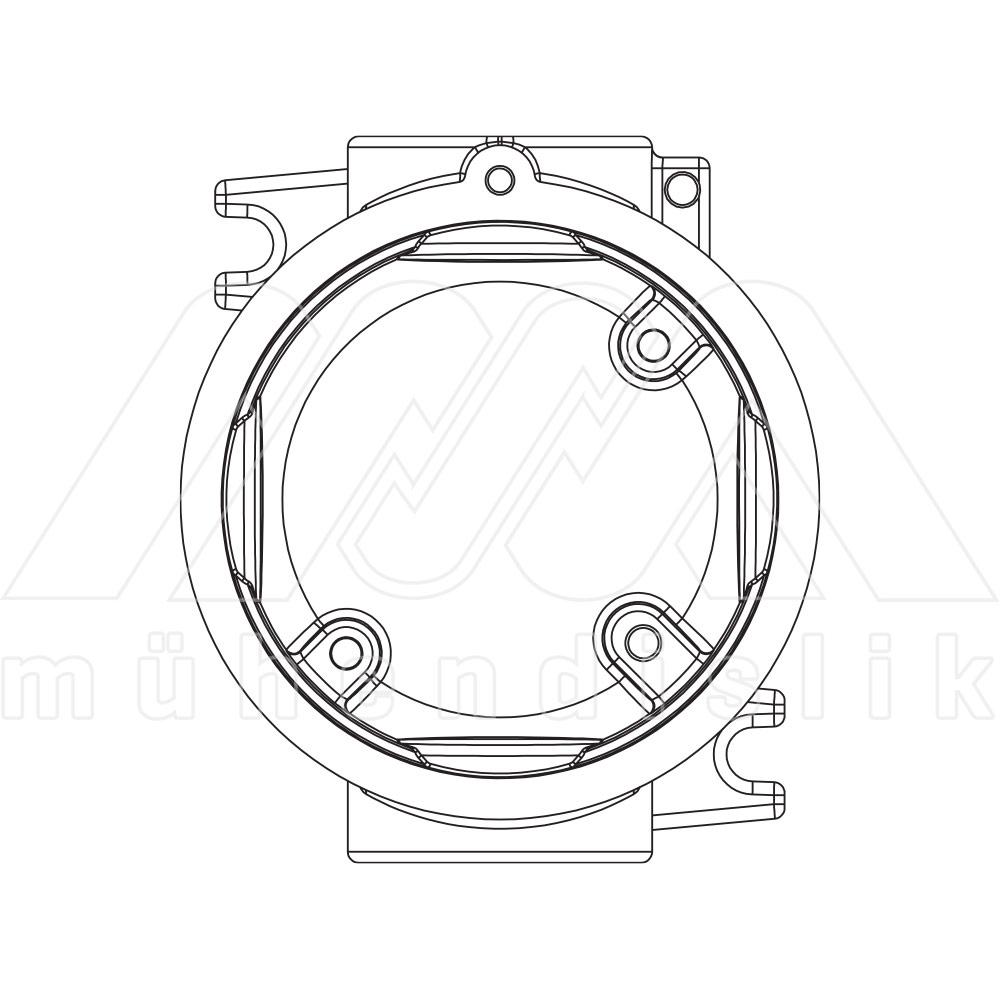

- There are grounding screws and two terminal mounting ears on the inner and outer surfaces of the junction boxes.
- Special manufacturing can be done on the same junction box, with different tooth type features and dimensions.
- It is used in surface mounted installations, cable distribution and connection with IMC/RSC type conduits.
Files
There is no file for this product.
Description
Gas | Gas Thread | Metric | Metric Thread |
|---|---|---|---|
ASC-119-G1 | 1/2" | ASC-119-M1 | M16x1,5 |
ASC-219-G2 | 3/4" | ASC-219-M2 | M20x1,5 |
ASC-319-G3 | 1" | ASC-319-M3 | M25x1,5 |
