Product Code:AST-119-G1

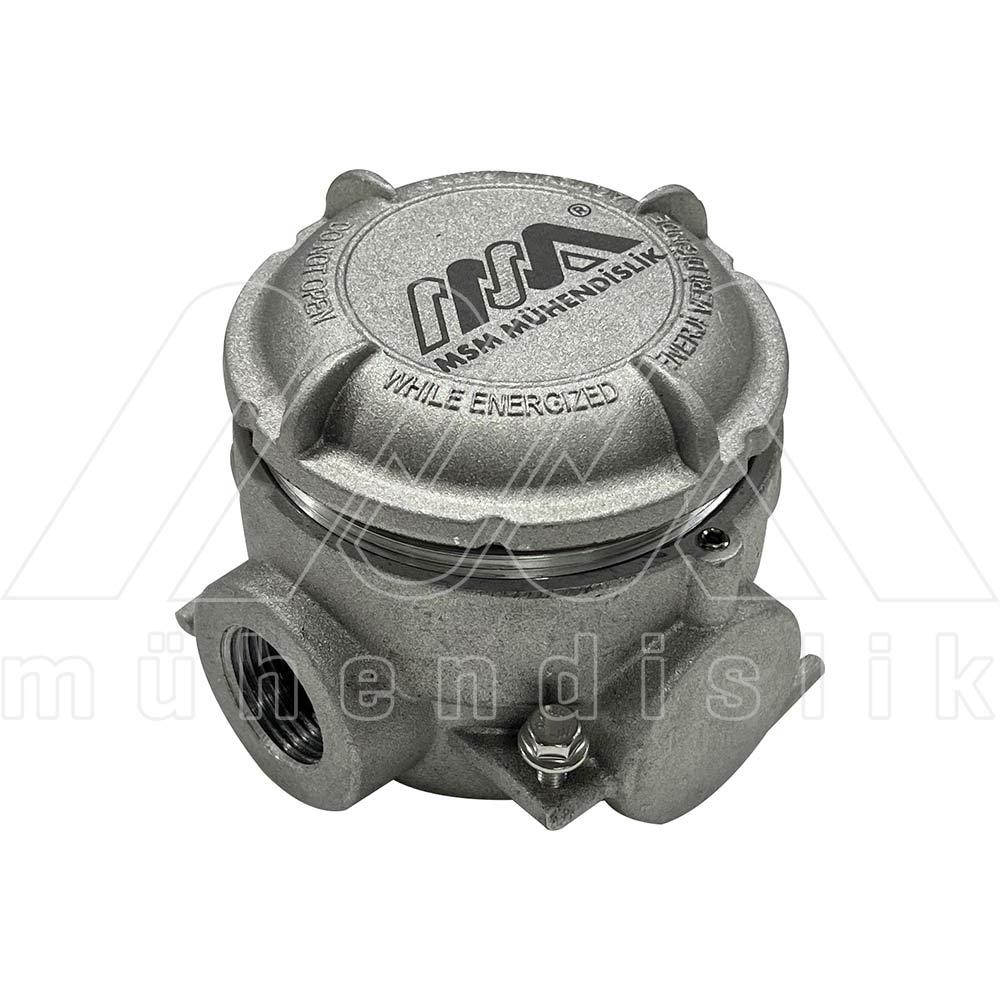

It is made of aluminum injection molding. Upon request, electrostatic paint can be applied in RAL... color.

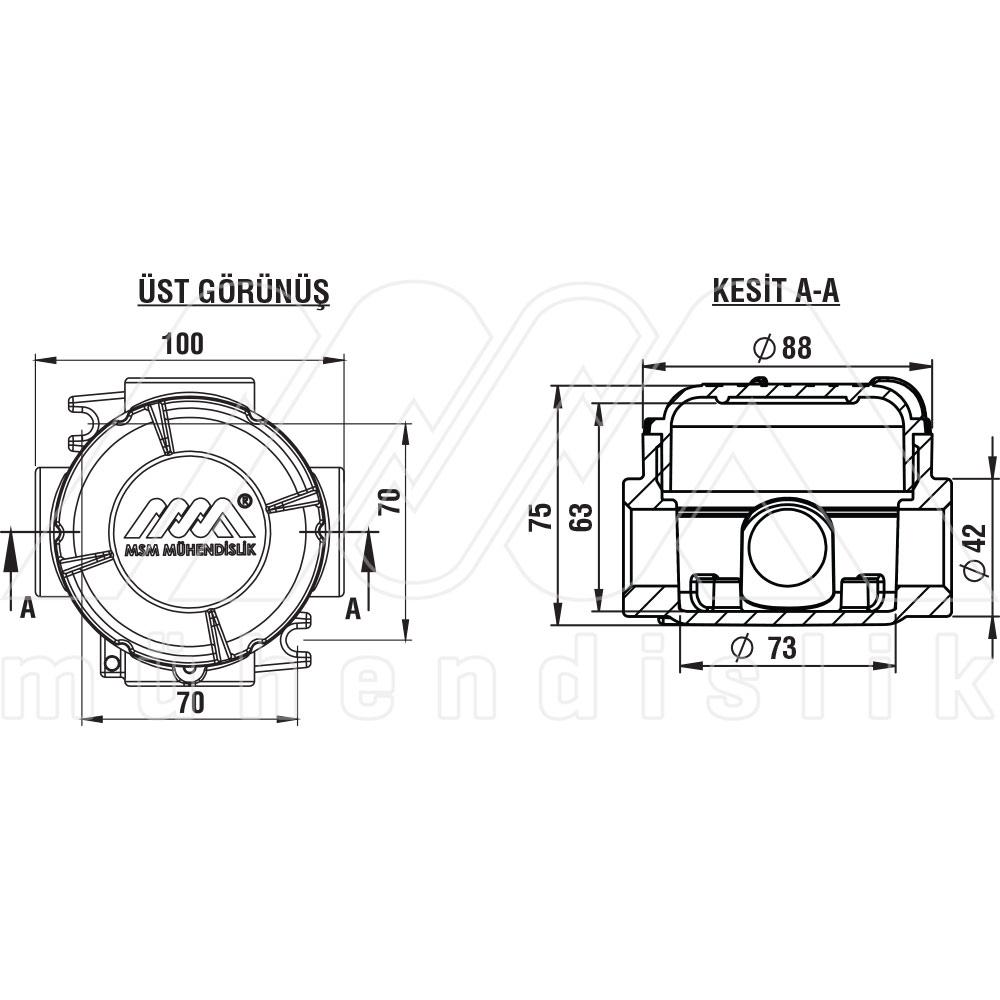

The net inner depth of Ø 88 mm junction boxes is 63 mm, the net inner diameter is 77 mm and the body wall thickness is 3.5 mm.
There are grounding screws and two terminal mounting ears on the inner and outer surfaces of the junction boxes.
Special manufacturing can be done on the same junction box, with different tooth type features and dimensions.
It is used in surface mounted installations, cable distribution and connection with IMC/RSC type conduits.

Files

There is no file for this product.

Description

Gas Code	Gas Thread Size	Metric Code	Metric Thread Size
AST-119-G1	1/2"	AST-119-M1	M16x1,5
AST-219-G2	3/4"	AST-219-M2	M20x1,5
AST-319-G3	1"	AST-319-M3	M25x1,5
