AST Type Cast Aluminum Junction Box (3 Way

MSM click to view other products of the brand.

Product Code:AST-309-G1

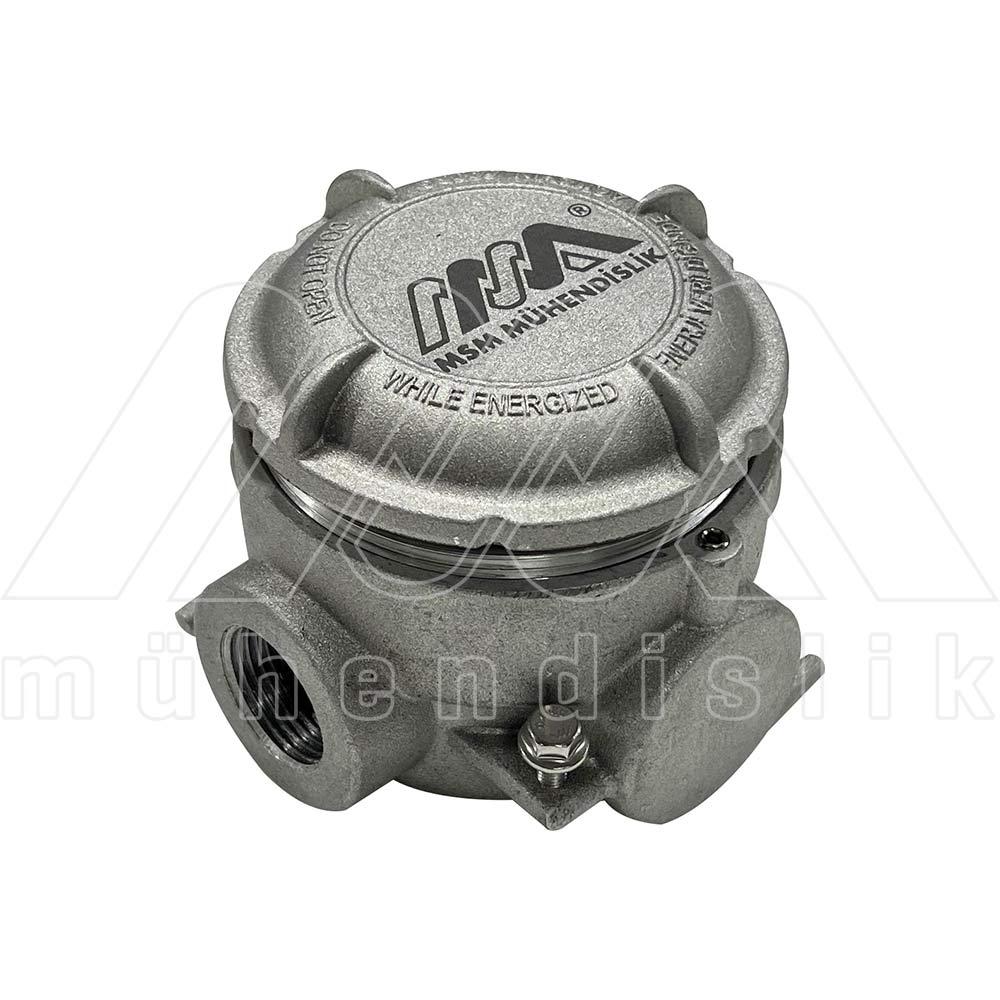

It is made of aluminum injection molding. Upon request, electrostatic paint can be applied in RAL... color.

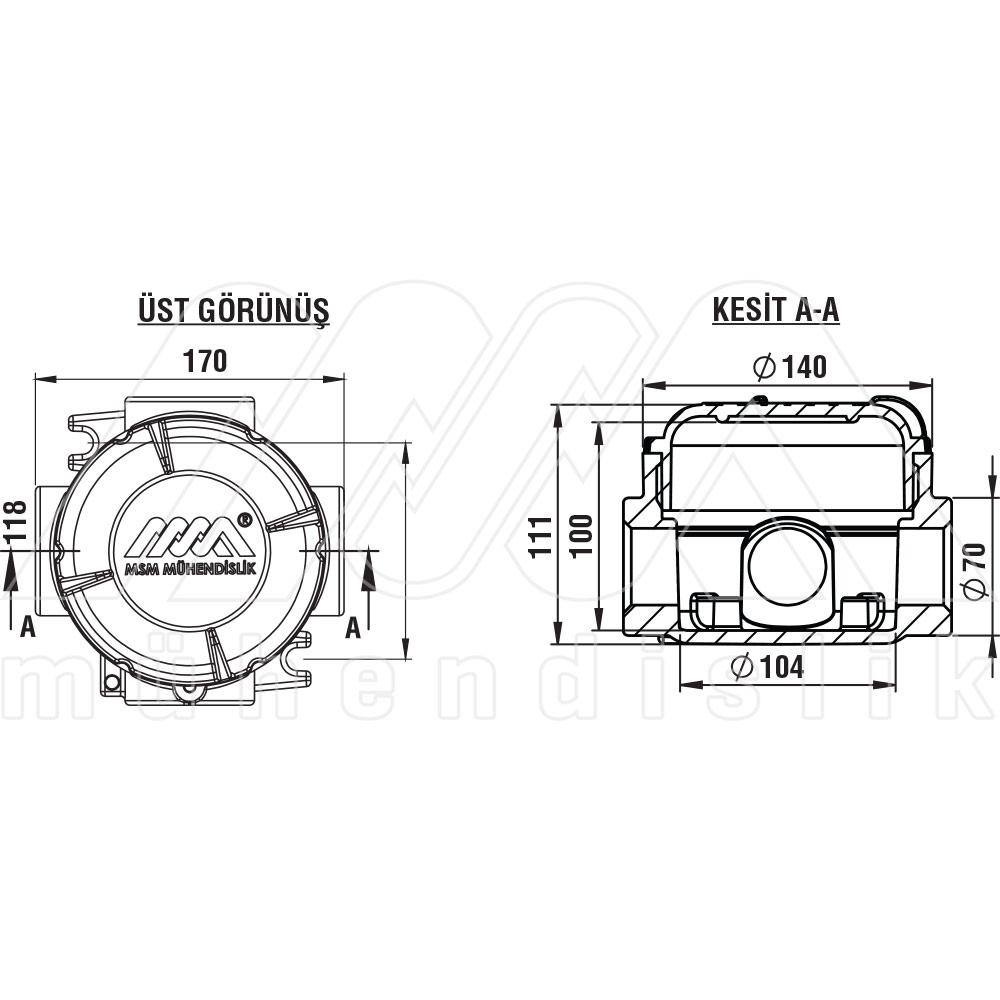

The internal depth of Ø 140 mm junction boxes is net 100 mm, the internal diameter is net 104 mm and the body wall thickness is 5.0 mm.

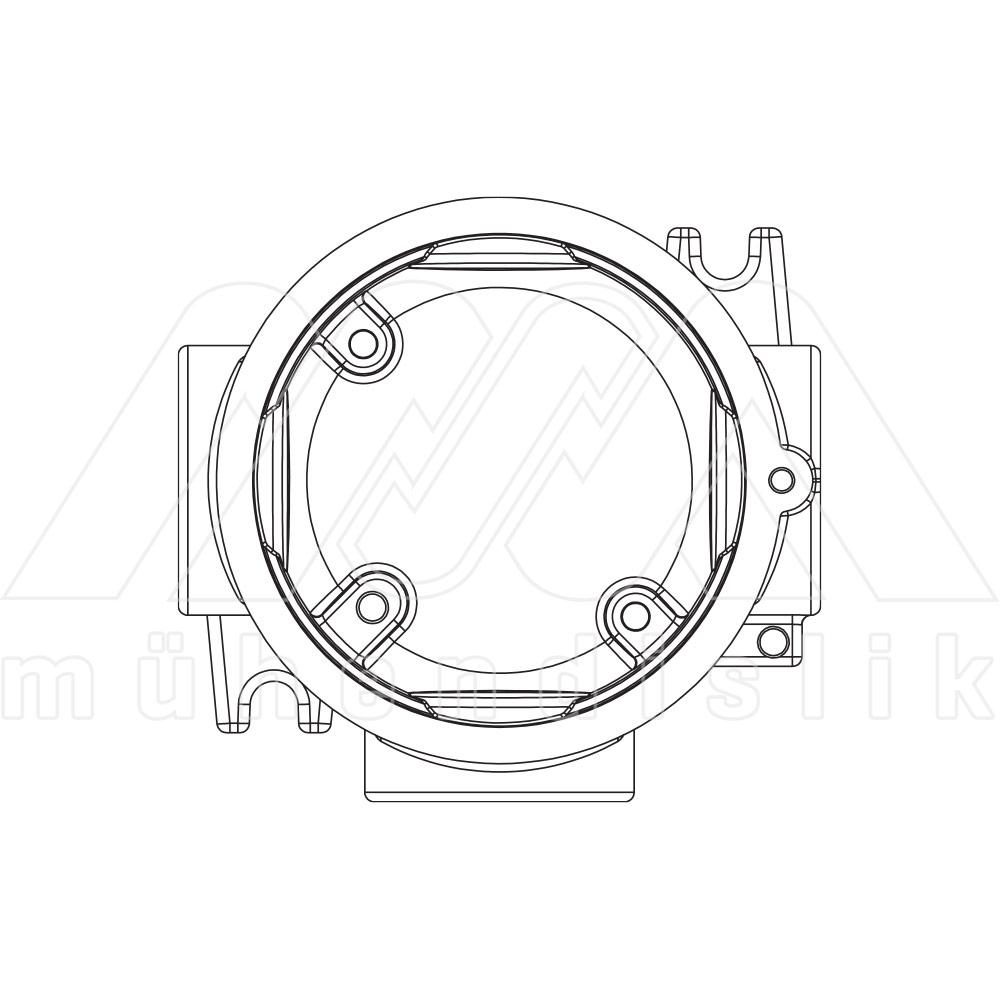

There are grounding screws and two terminal mounting ears on the inner and outer surfaces of the junction boxes.
Special manufacturing can be done on the same junction box, with different tooth type features and dimensions.
It is used in surface mounted installations, cable distribution and connection with IMC/RSC type conduits.

There is no file for this product.

Gas Code	Gas Thread Size	Metric Code	Metric Thread Size
AST-309-G1	1"	AST-309-M1	M32x1,5
AST-409-G2	1 1/4"	AST-409-M2	M40x1,5
AST-509-G3	1 ½"	AST-509-M3	M50x1,5
AST-609-G4	2"	AST-609-M4	M63x1,5
